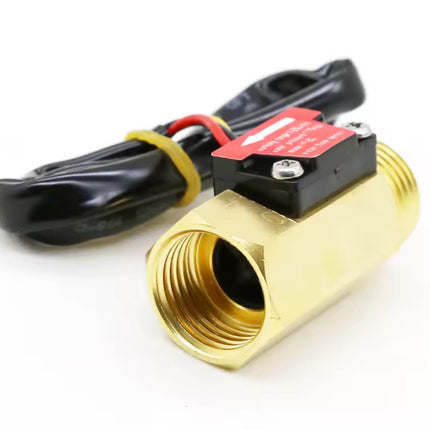

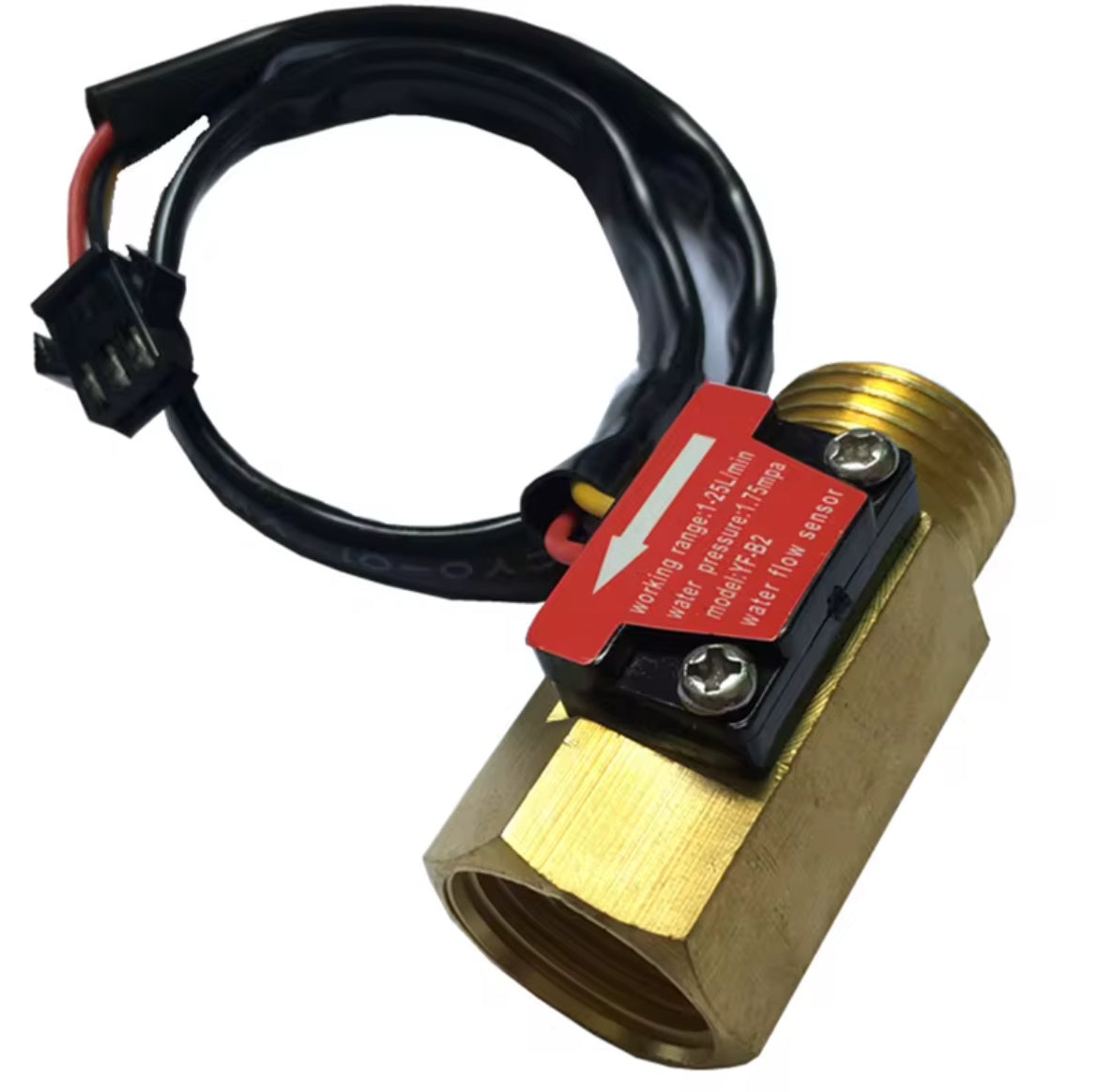

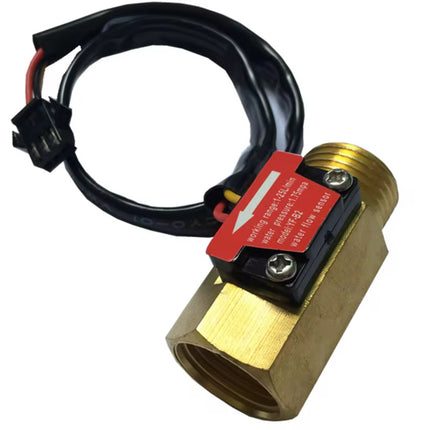

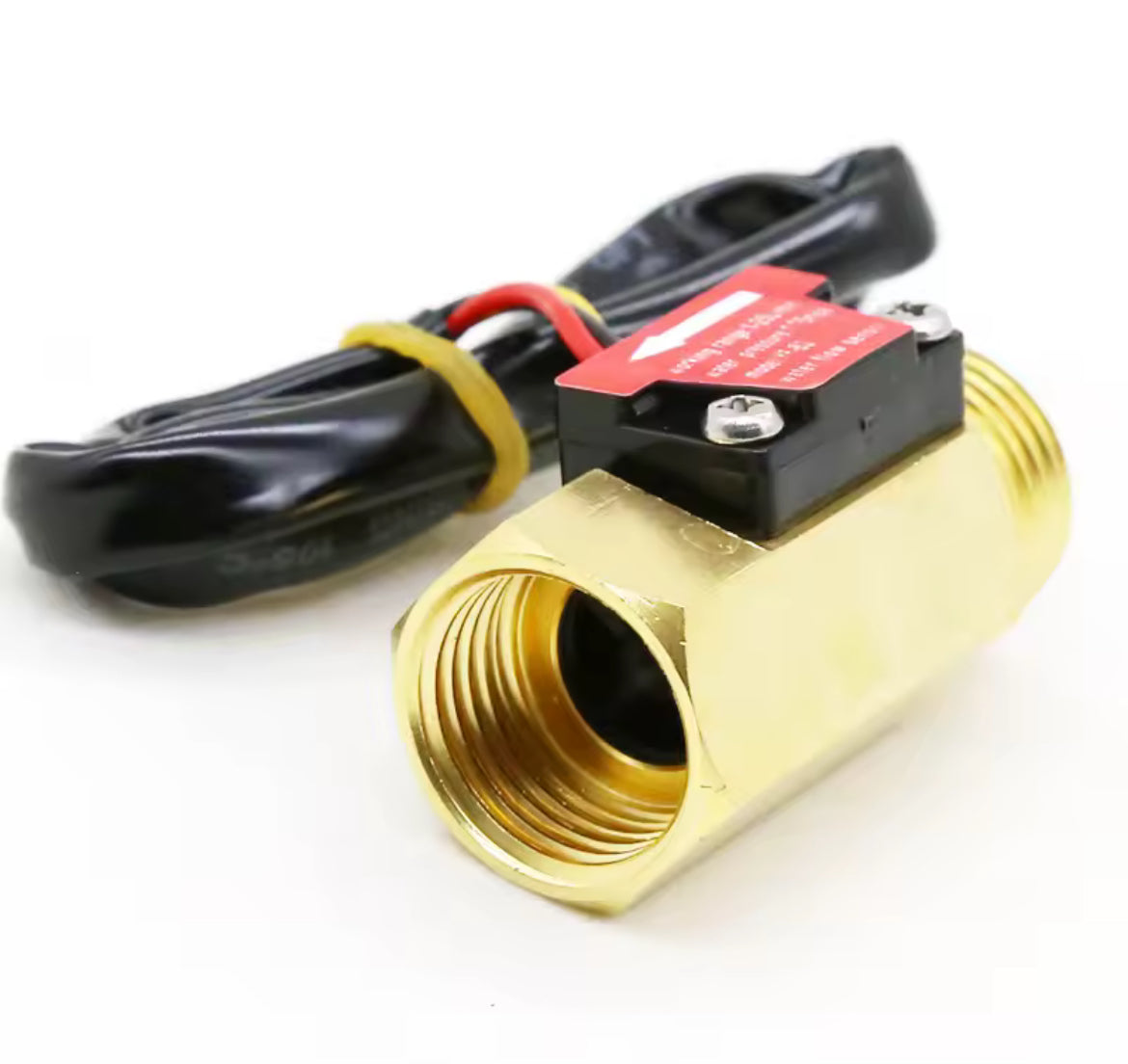

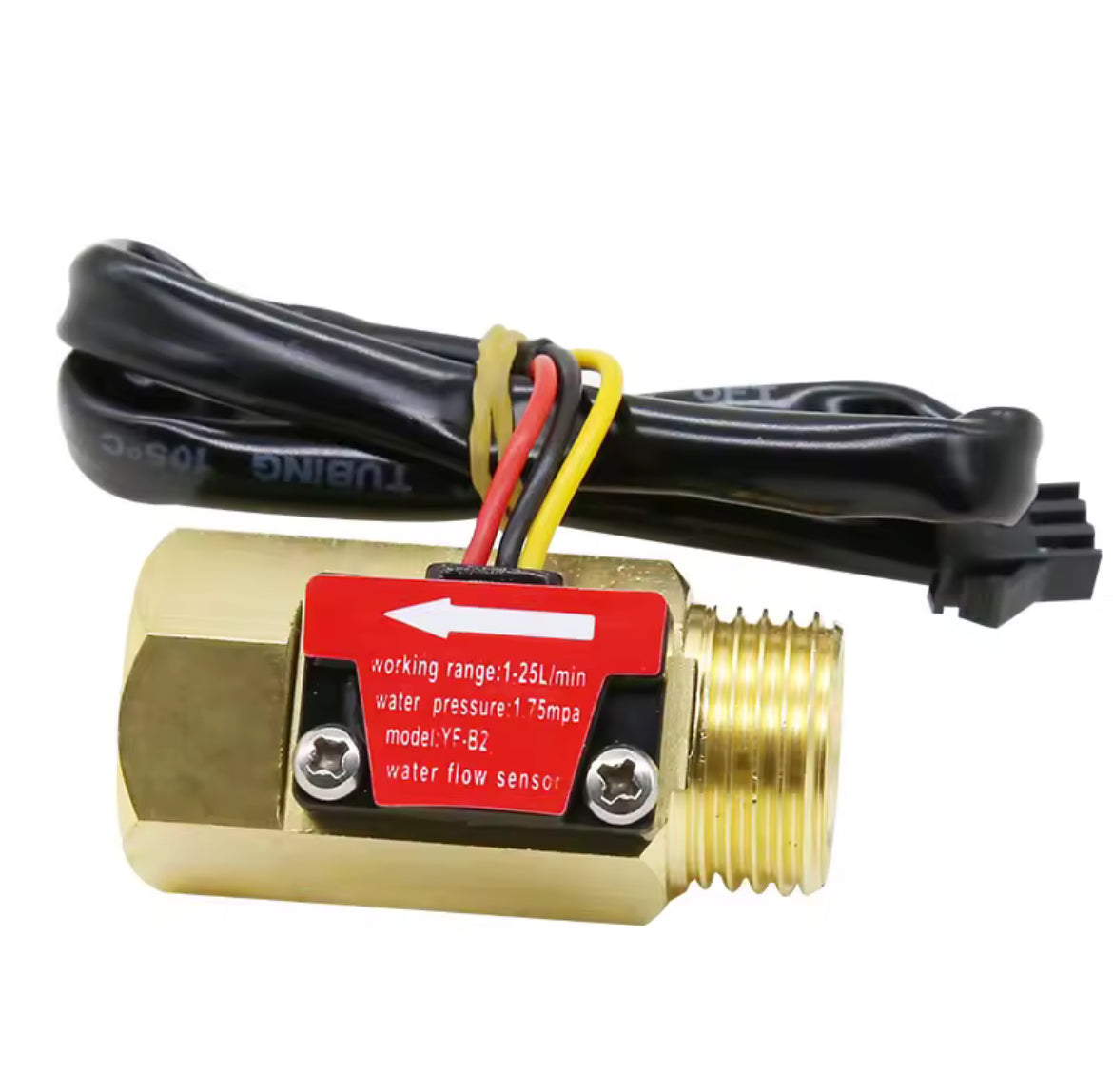

G1/2 inch flow rate 1~25 L/min copper Hall turbine flow sensor for water

Copper water flow sensor with magnetic hall effect

1. Product description for the flow sensor:

(1) Product Name: Copper Flow Sensor

(2) Material: Plastic cell turbines with a copper body

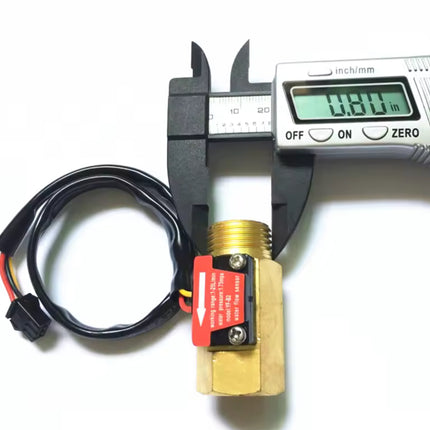

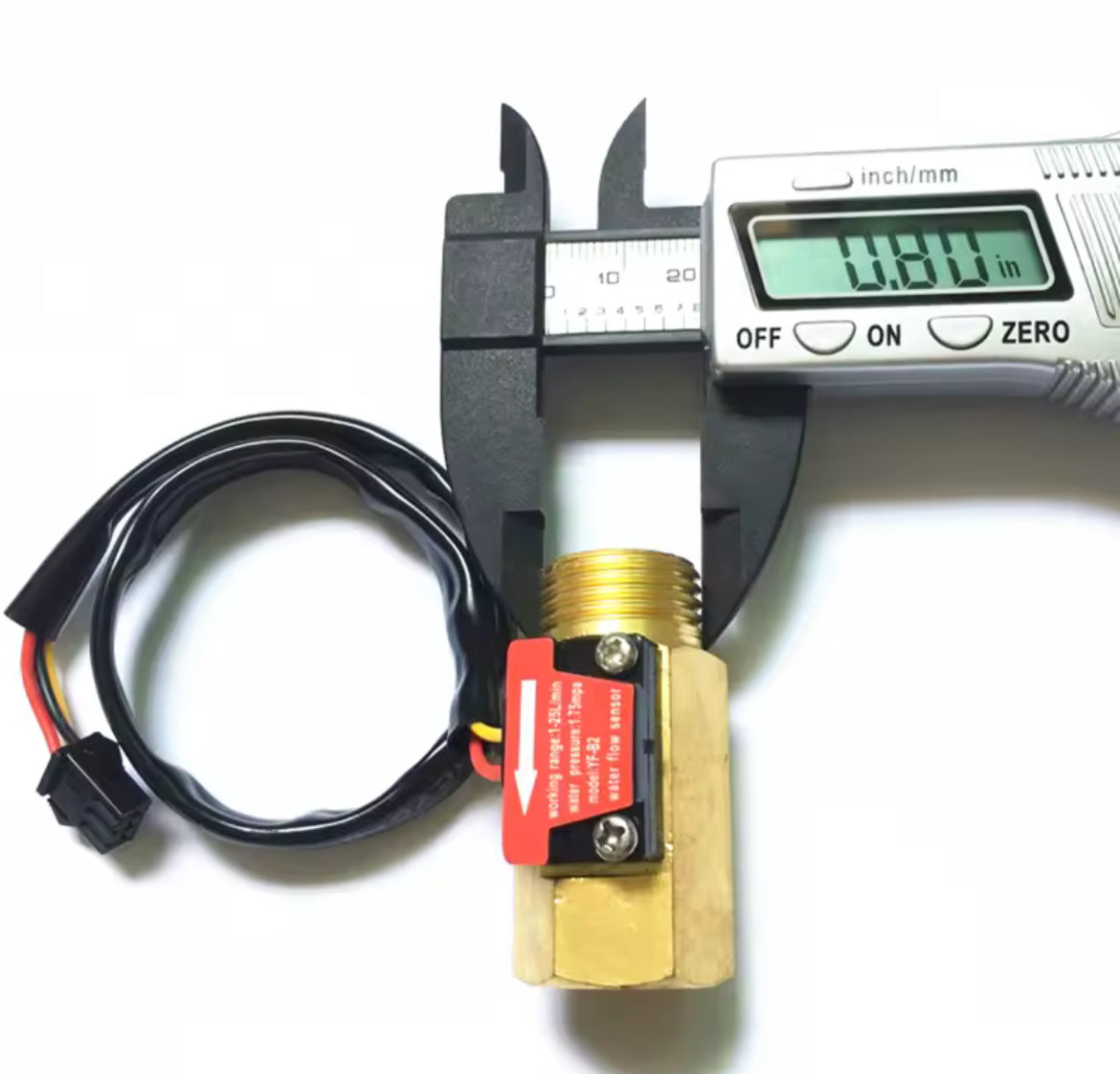

(3) Size: 44 × 28 mm

(4) Thread connection: G1/2" OD-ID thread

(5): Installation position: horizontal and vertical

(6) Color: Golden copper

(7) Place of origin: China (Mainland)

(8) Brand:

(9) Item No.: YF-B2

(10) Application: Water heater, welder and heat pump... etc.

2. Technical data of the flow sensor

(1) Flow rate: 1 ~ 25 liters/minute

(2) Flow rate: F = 11 * Q ± 5%, Q = L/min

(3) Operating voltage: DC4.5V ~ 24V

(4) Operating current: 15 mA

(5) Resistive pressure: Maximum 1.5 MPa

(6) Operating temperature: -40°C ~ +80°C,

(7)Min Insulation Resistance: 100M ohms

(8) Duty cycle of output pulse: 50% +/- 10%

(9) Maximum output pulse voltage: > DC4.7V (input voltage DC5V)

(10) Minute output pulse voltage:

(11) Sensing: Hall effect sensor, digital output.

(12) Wire connection:

Station 1 (red): In DD "+"

Station 2 (Black) Pottery "-"

Terminal 3 (yellow): NPN pulse signal output

(13) Connector: Housing SM2.54-3P
