Description

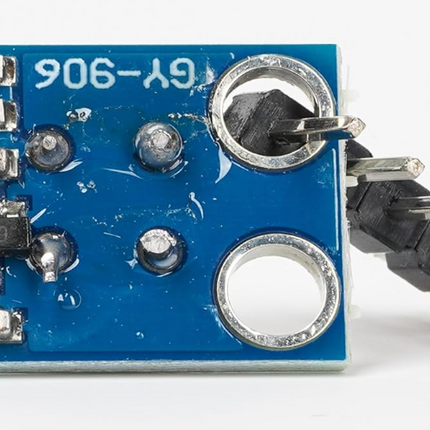

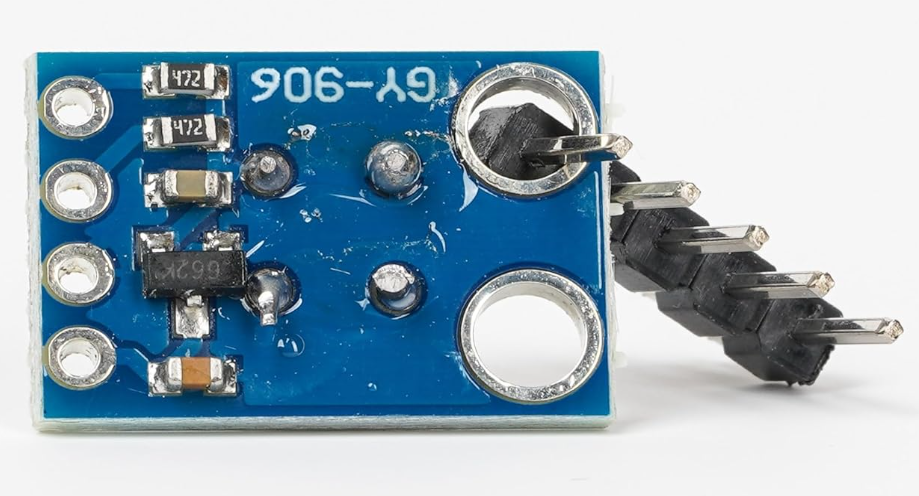

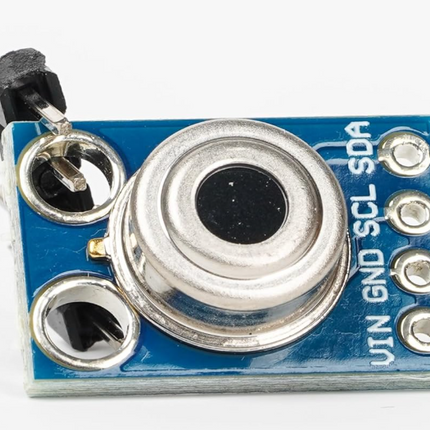

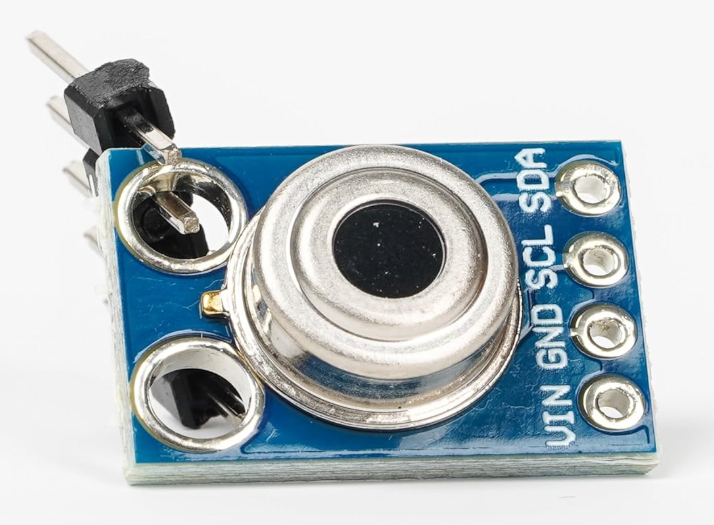

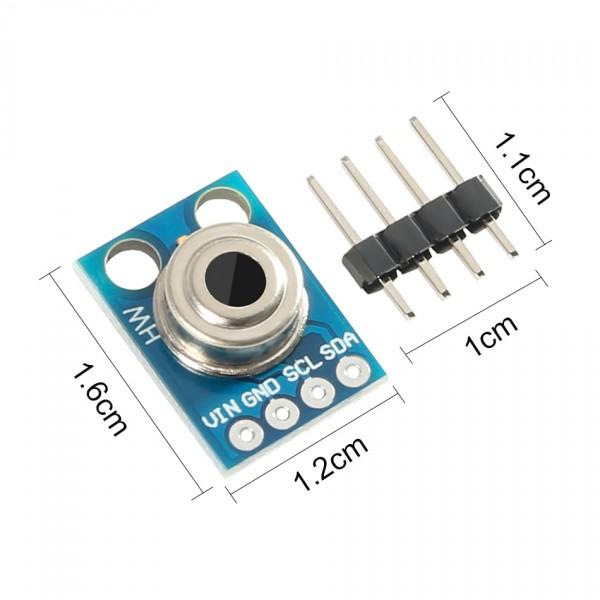

وحدة استشعار درجة الحرارة اللاسلكية GY-906 MLX90614ESF MLX90614 متوافقة مع أردوينو

• 【Feature】Small size, low cost. Install on the splitter board with two types of pins: 10k pull-up resistor for I2C interface with optional solder jumper. Easy to integrate.
• 【Temp. Specification】Factory-calibrated temperature ranges are wide: -40°C - + 125°C for sensor temperature and -70°C - Object temperature + 380°C. Over a wide temperature range (Ta and To are both 0... High accuracy at + 50°C) is 0.5°C high precision (medical) calibration 0.02°C measurement resolution.
• 【Function】Single - and two-zone versions. SMBus is compatible with digital interfaces. Customizable PWM output for continuous reading. Simple adaptation 8... For 16V applications. Sleep mode to reduce power consumption.
• 【Application】High precision non-contact temperature measurement. Thermal comfort sensor for mobile air conditioning control systems. Temperature sensing elements for air conditioning in residential, commercial and industrial buildings windshield fog removal. Automobile blind Angle detection. Industrial temperature control of moving parts. etc.

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor

Pros and cons

• Sustainably produced
• Ideal for everyday use
• May discolor in direct sunlight
