Description

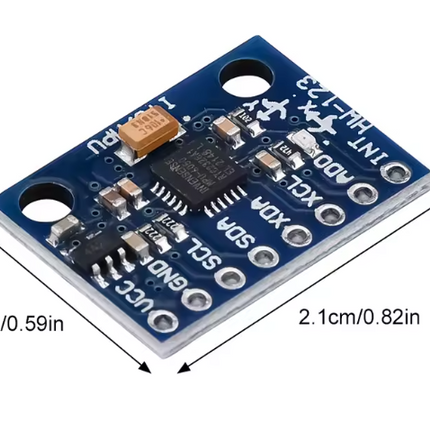

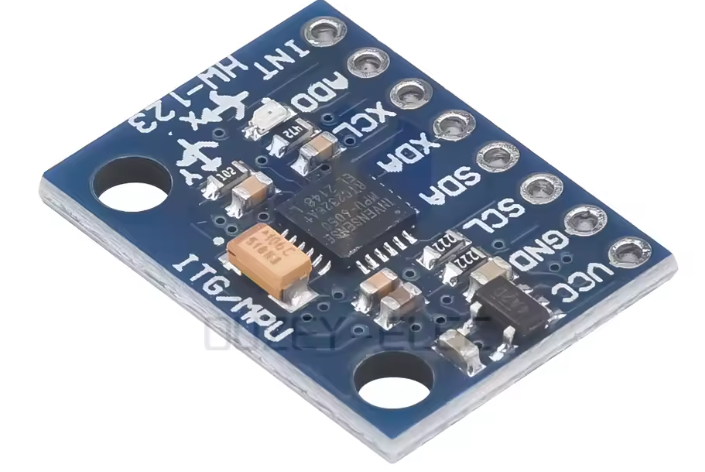

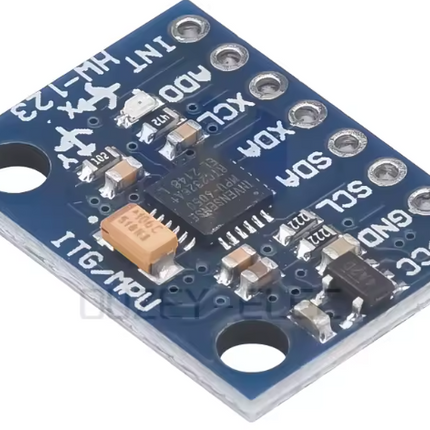

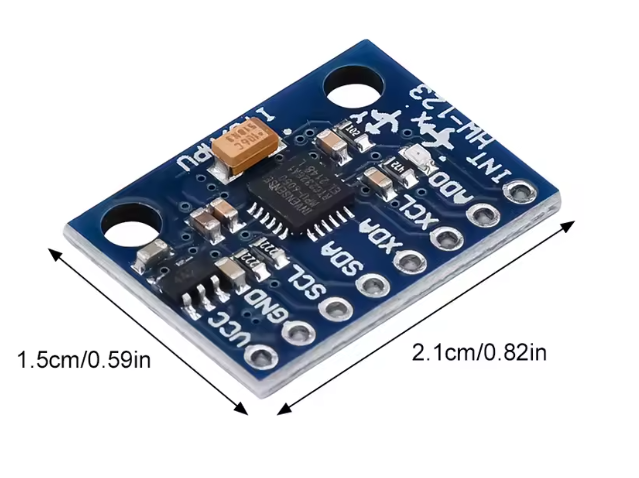

مستشعر MPU6050 سداسي المحاور GY-521

Features:
1.Digitally output the fusion calculation data of rotation matrix, quaternion, and Euler Angle format for 6 or 9 axes.
2.A 3-axis angular velocity sensor (gyroscope) with a sensitivity of 131 LSBs/°/sec and a full grid sensing range of ± 250, ± 500, ± 1000, and ± 2000 °/sec.
3.A 3-axis accelerator with programmable control range of ± 2g, ± 4g, ± 8g, and ± 16g.
4.Remove the sensitivity between the accelerator and gyroscope axes, reduce the impact of the setting and the drift of the sensor.
5.The Digital Motion Processing (DMP) engine can reduce the load of complex fusion calculation data, sensor synchronization, posture sensing, and more.

Parameters:
Using chip: MPU-6050
Power supply: 3-5 V (internal low voltage differential voltage stabilization)
Communication method: Standard IIC communication protocol
The chip is equipped with a built-in 16bit AD converter and 16 bit data output
Gyroscope range: ± 250 500 1000 2000 °/s
Acceleration range: ± 2 ± 4 ± 8 ± 16g
Pin spacing 2.54mm

Application:
Motion sensing games
Augmented reality
Electronic Image Stabilization (EIS)
Optical Image Stabilization (OIS)
Pedestrian Navigator
Zero touch gesture user interface
Posture shortcut

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor
