Flex 4.5" Unidirectional Bend Sensor مستشعر مرن 4.5 بوصة Specification Parameter Resistance When Straight 10 kΩ Resistance Tolerance ±30% Resistance... Read more
34,000.000 IQD Excl. VAT
مستشعر مرن 4.5 بوصة
| Specification | Parameter |
|---|---|
| Resistance When Straight | 10 kΩ |
| Resistance Tolerance | ±30% |
| Resistance Change When Bent | 60 kΩ – 110 kΩ |
| Rated Power | 0.5 W |
| Peak Power | 1 W |
| Bending Life | >1 Million Cycles |
| Operating Temperature | -35 °C to +80 °C |

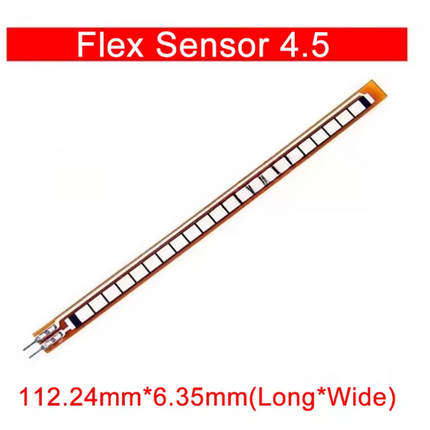

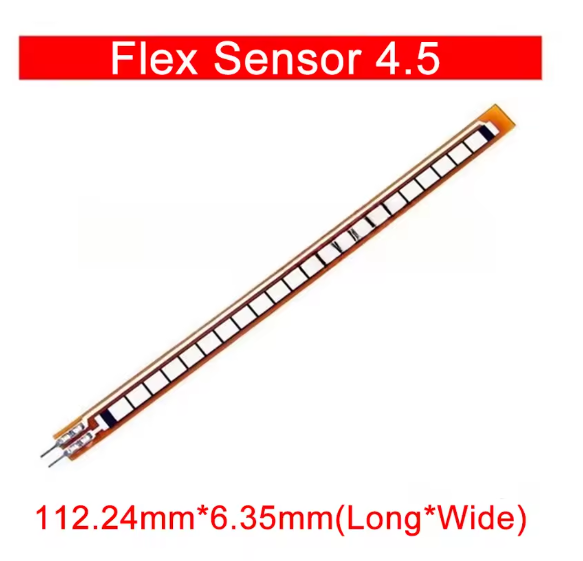

| Dimensions | 112.24 mm × 6.35 mm (L × W) |
| Connector Type | 2-Pin Metal Pins (0.1" pitch) |
