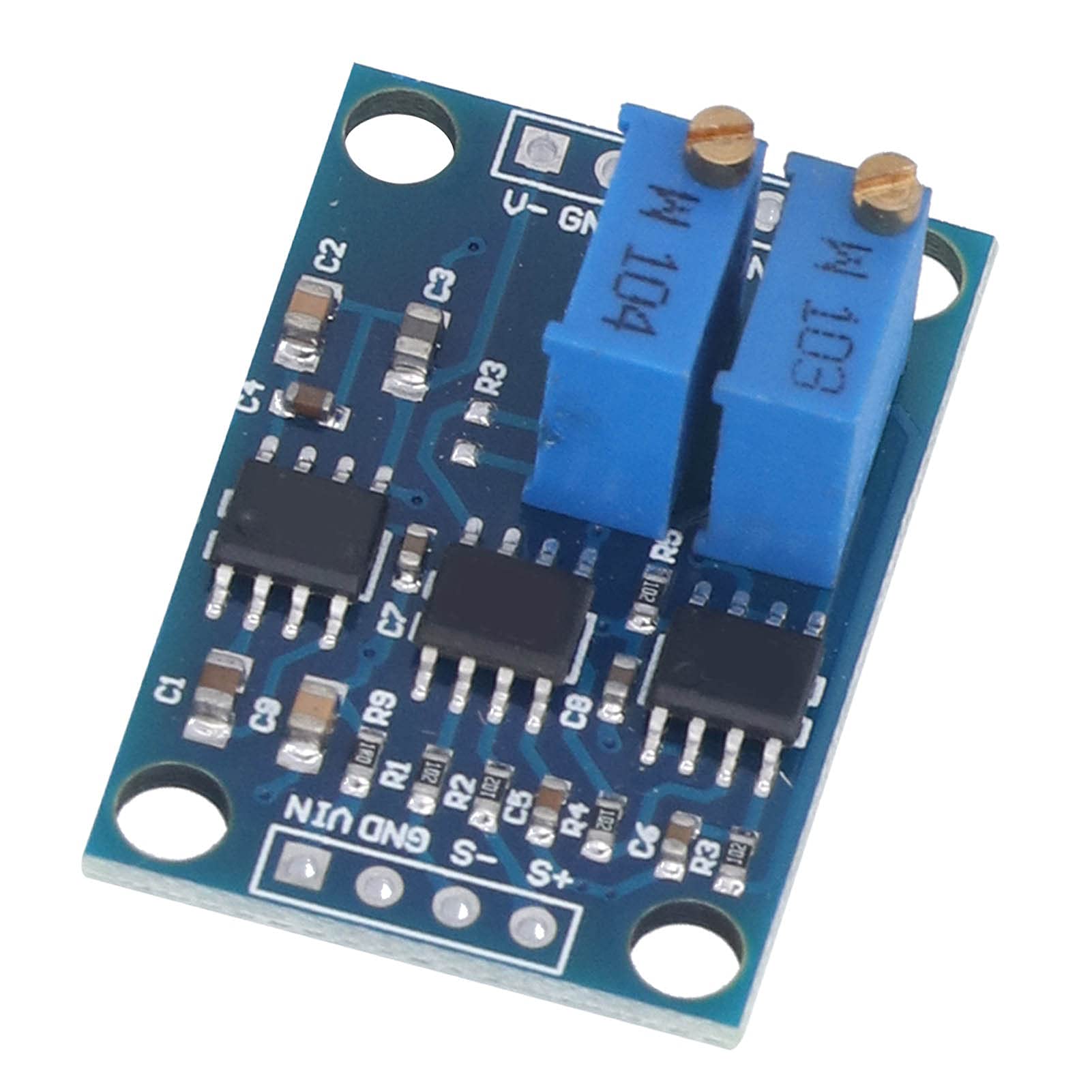

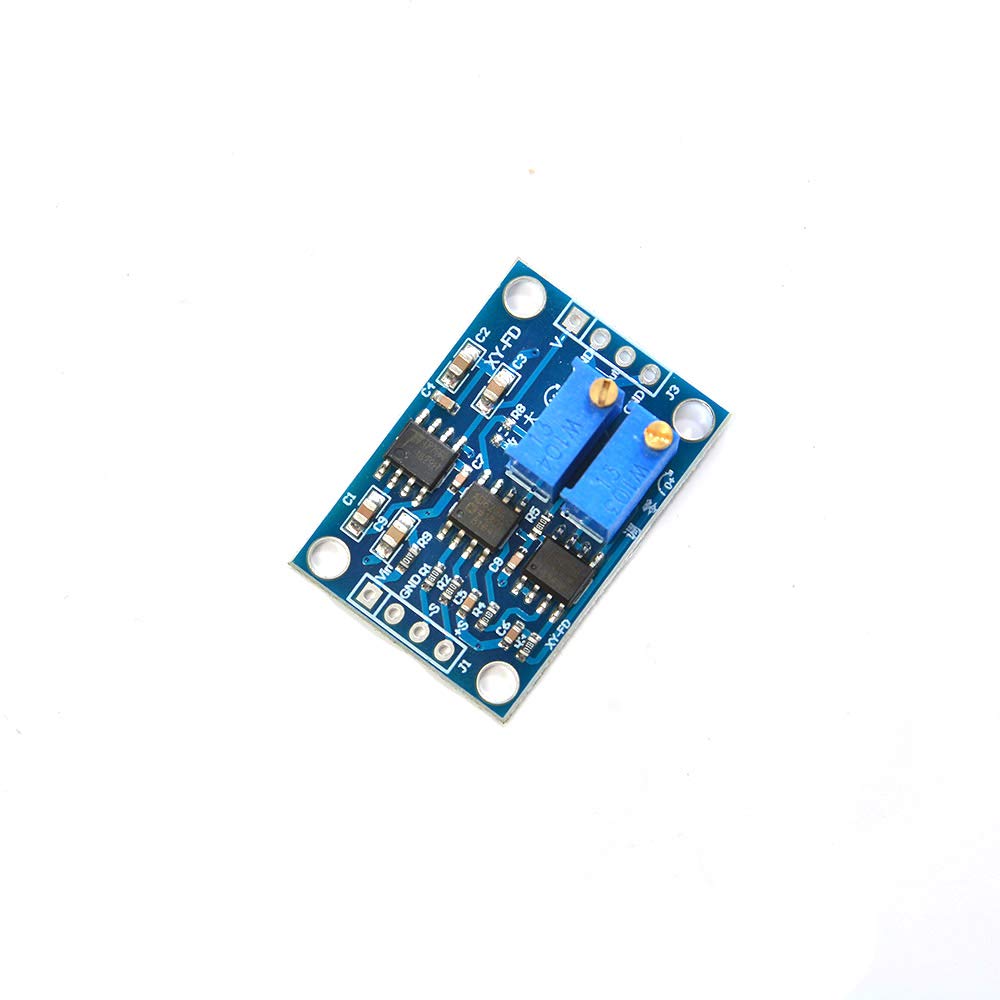

A premium, laboratory-grade AD620 high-precision instrumentation amplifier module engineered for microvolt and millivolt signal conditioning and clean telemetry acquisition.
The AD620 Instrumentation Amplifier module is considered the professional engineering choice and the standard Benchmark in laboratory and medical measurement applications; it is specifically designed to extract and amplify very weak signals surrounded by noise, which ordinary operational amplifiers (Op-Amps) cannot process, making it the key component for connecting advanced sensors to Arduino and microcontrollers.
The board is characterized by its high common-mode rejection ratio (CMRR) and contains two successive amplification stages with internal negative voltage regulation, allowing you to input very small DC voltage signals and amplify them precisely from 1.5 times up to 10,000 times fully via the built-in variable resistor. The module is also equipped with a zero potentiometer to ensure the highest possible reading accuracy. It is the professional and unique solution for mechatronics and biomedical engineering students to build electrocardiogram and pulse and muscle voltage devices (ECG/EMG), process thermocouple readings, sensitive bridge circuits (Bridge Transducers), and advanced STEM projects.
A premium, laboratory-grade AD620 high-precision instrumentation amplifier module engineered for microvolt ($\mu\text{V}$) and millivolt ($\text{mV}$) signal conditioning and clean telemetry acquisition. Standing as the definitive hardware benchmark for biomedical engineering and precision sensor routing, this board leverages the legendary AD620 architecture to isolate and amplify ultra-weak potentials embedded in harsh electrical noise. Supporting a wide 3-12V DC input rail with an internal negative voltage generator, it yields an adjustable amplification sweep from 1.5x up to 10,000x via an onboard multi-turn potentiometer. Outfitted with a dedicated zero-null calibration potentiometer to eliminate DC offsets, it serves as an indispensable hardware block for custom ECG/EMG monitors, high-accuracy thermocouple transmitters, wheatstone bridge sensors, and advanced academic STEM electronics research.
