Description

The exceptional and most powerful version in the history of the Raspberry Pi Foundation, it comes with a gigantic 16GB RAM to break all previous limitations and give developers and engineers performance similar to full desktop computers on a palm-sized board.

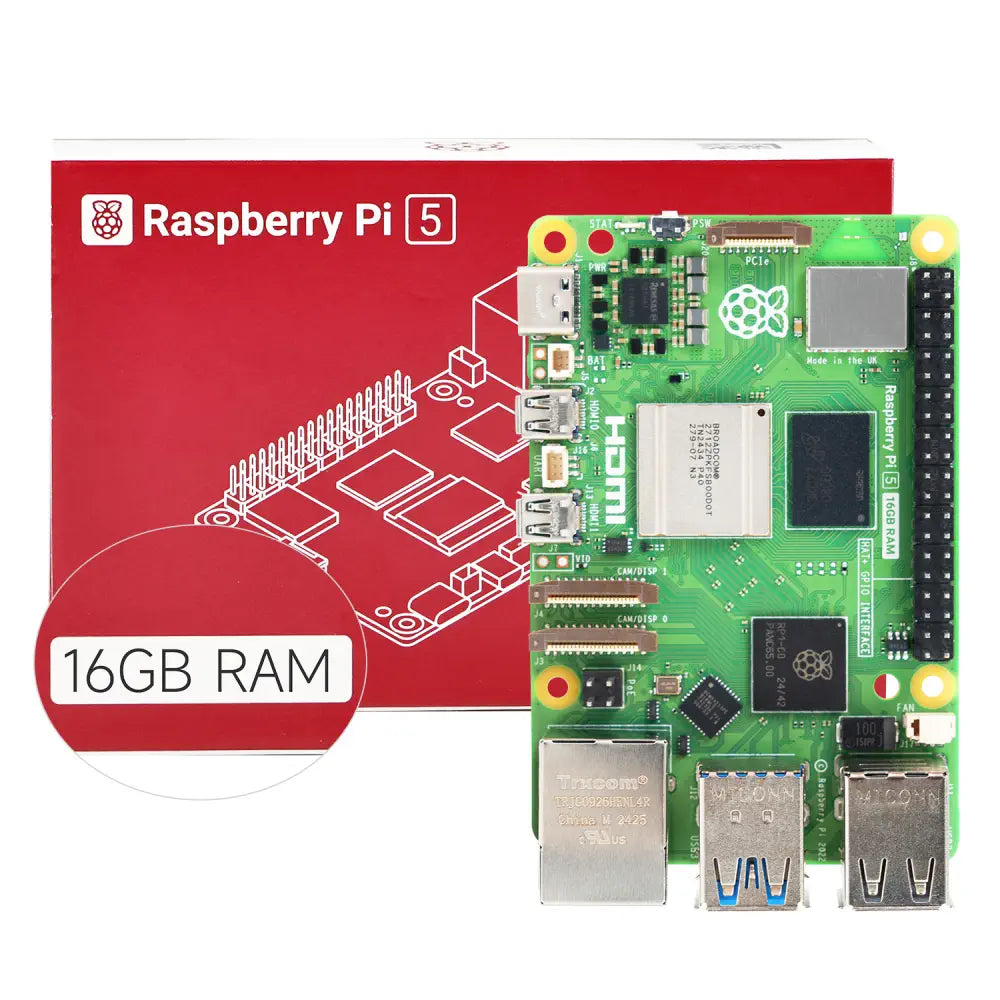

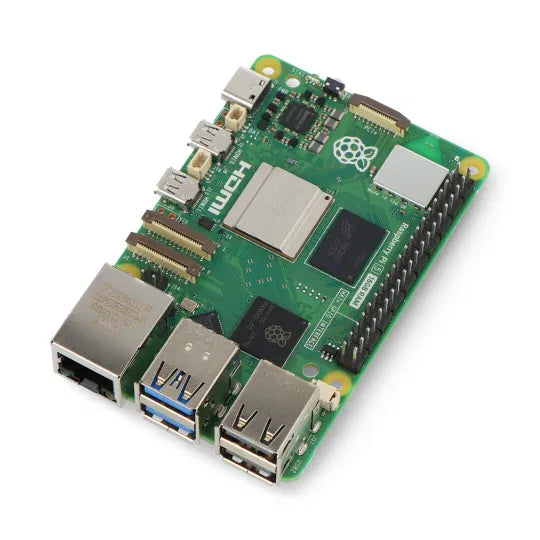

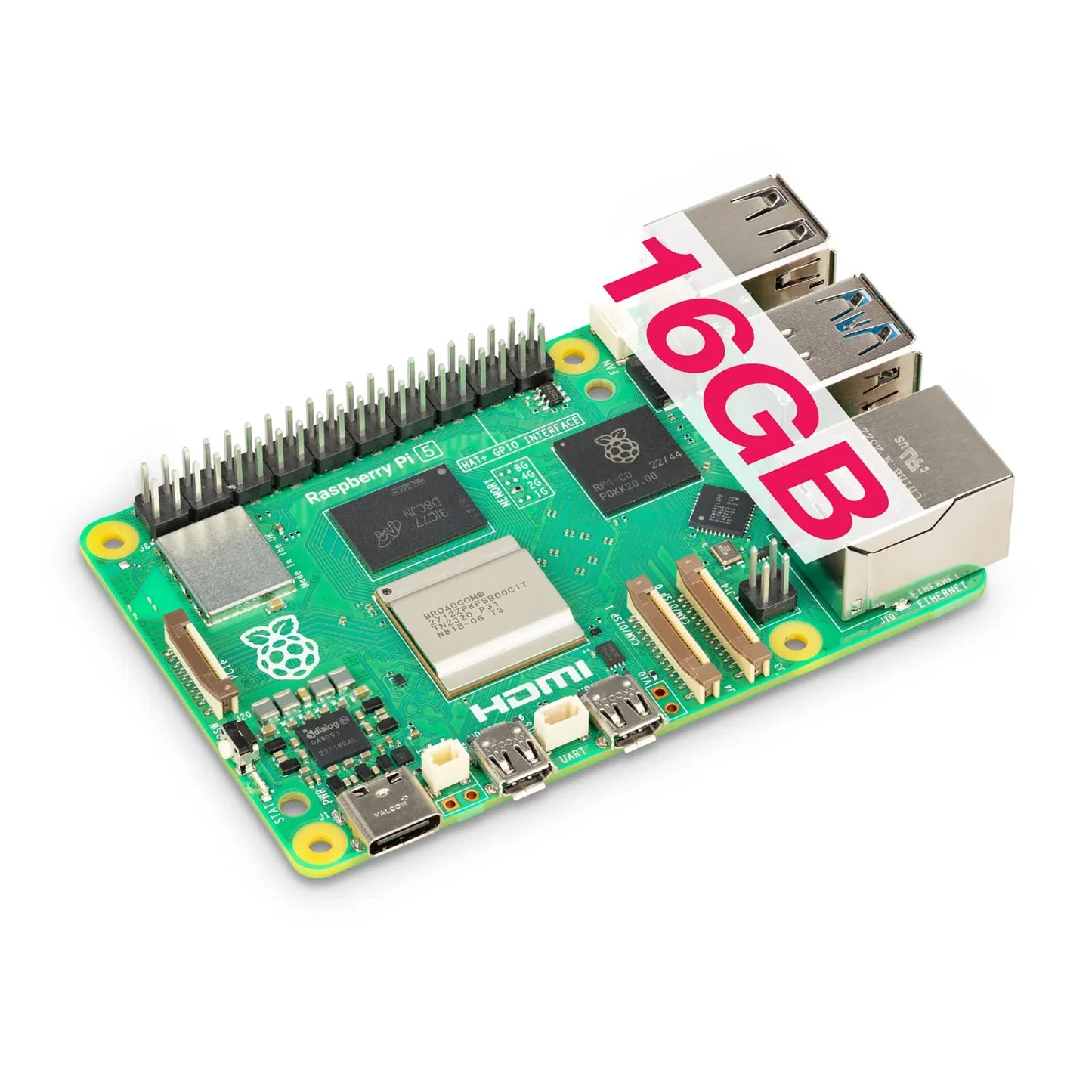

The Raspberry Pi 5 - 16GB board is the engineering peak and the absolute standard Benchmark for advanced embedded systems; it is equipped with the super Broadcom quad-core processor at $2.4\text{ GHz}$, supported by a massive 16GB capacity that allows running the heaviest Generative AI models, training Deep Learning networks locally, and building giant web servers and databases that handle thousands of requests simultaneously without any delay.

The revolutionary I/O control chip (RP1 I/O) ensures astonishingly fast and efficient communication with GPIO ports and sensors, while the built-in PCIe 2.0 port allows you to connect NVMe SSDs for insane data read and write speeds. The board supports running two screens simultaneously at $4\text{K}$ resolution and a $60\text{Hz}$ refresh rate with absolute smoothness via two Micro-HDMI ports, and is equipped with dual wireless communication interfaces Wi-Fi and Bluetooth 5.0, along with a built-in mechanical power button and a real-time clock (RTC). It is the first and only professional choice for graduation projects and advanced scientific research, building Edge Computing servers, and complex industrial computer vision applications.

Quick Technical Specs

• CPU: Broadcom BCM2712 quad-core processor (Quad-core ARM Cortex-A76) at $2.4\text{ GHz}$ with 64-bit architecture.

• RAM: 16GB (16GB LPDDR4X-4267) capacity, the maximum and most powerful globally for running the heaviest applications simultaneously.

• GPU: VideoCore VII processor supporting advanced graphics libraries such as OpenGL ES 3.1 and Vulkan 1.2.

• Display Outputs: Two Micro-HDMI ports supporting two displays at $4\text{K}$ and $60\text{Hz}$ simultaneously with full audio support.

• Wireless Connectivity:

  • Dual-band 802.11ac Wi-Fi at $2.4\text{ GHz}$ and $5.0\text{ GHz}$ for fast network connection.

  • Bluetooth 5.0 / BLE low energy version.

• Advanced Interfaces and Expansion Ports:

  • Integrated PCIe 2.0 x1 port (dedicated for connecting M.2 NVMe SSDs via HATs expansion boards for extreme storage speeds).

  • Super-fast wired local network port (Gigabit Ethernet).

  • Two USB 3.0 ports at 5Gbps simultaneously + two USB 2.0 ports.

  • Standard GPIO ports (40-Pin) supported by the RP1 chip for amazing response speed to sensors and actuators.

• Power Management and Integrated Features: USB-C power port (requires 5V/5A current to unlock full features smoothly), integrated power on/off button (Hardware Power Button), dedicated port for a smart cooling fan (PWM), and RTC battery port for time adjustment upon power loss.

The absolute supreme tier of the Raspberry Pi empire, packing a colossal 16GB of high-speed LPDDR4X RAM to permanently shatter hardware constraints and deliver desktop-class computational power on a pocket-sized board. Standing as the definitive hardware benchmark for enterprise edge AI, generative machine learning models, and heavy multi-container server orchestration, this flagship single-board computer is driven by a 64-bit quad-core Broadcom BCM2712 processor clocked at 2.4 GHz. With a massive 16GB RAM buffer, it fluidly processes complex computer vision pipelines and multi-threaded developer environments while driving dual 4K60 displays through its VideoCore VII GPU architecture. Fortified by the custom RP1 I/O silicon and hosting a native PCIe 2.0 interface for blazing-fast NVMe storage expansions, it serves as an indispensable asset for autonomous robotics, big-data localized servers, and advanced academic STEM mechatronics research.

المواصفات

• الوزن: داخلي وخارجي

Pros and cons

• منتج مستدام، مثالي للاستخدام اليومي
• قد يتغير لونه عند التعرض لأشعة الشمس المباشرة
