Description

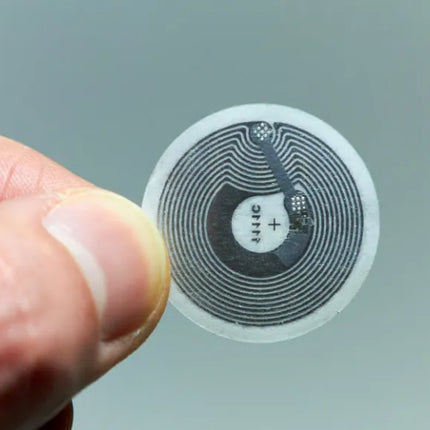

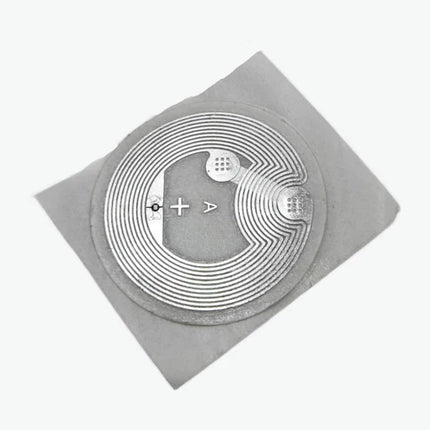

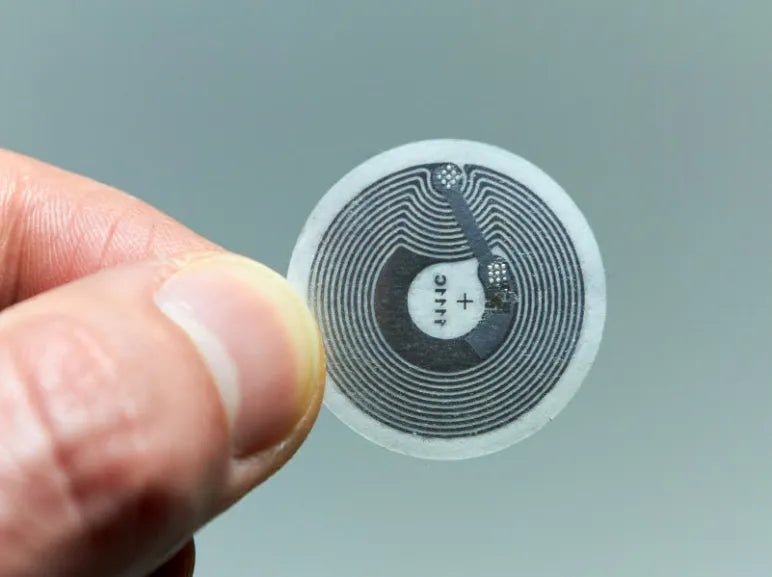

Smart NFC tag and sticker based on the standard Ntag213 chip with 144 bytes capacity and 13.56 MHz frequency to support automation, data sharing, and one-touch link sharing via smartphones.

Professional NFC Tags based on the famous and most stable global chip Ntag213. This wireless tag operates at the global standard frequency of 13.56MHz and follows the strict compliance protocol ISO 14443A, giving it absolute and immediate compatibility with all modern smartphones (iPhone and Android) and electronic readers by simply bringing the phone close to it from a few centimeters away, without the need for a battery or external power.

The chip provides an actual usable storage capacity of 144 Bytes (144 Bytes Usable Capacity), which is an ideal and protected space for programming and writing basic data such as: electronic links (URLs), smart business cards (vCard), Wi-Fi passwords, or automatic commands and calls. This tag is considered the basic component and benchmark for contactless payment applications, smart identity and access control systems, logistics warehouse management and goods tracking, and developing smart home automation scenarios by programming it to perform specific tasks in the home, in addition to its direct integration into IoT projects and RFID/NFC readers attached to Arduino and Raspberry Pi.

NTAG213 High-Sensitivity NFC Tag Module (13.56MHz ISO 14443A Contactless Smart Transceiver - 144 Bytes Memory Capacity).

Industrial-grade NTAG213 NFC (Near Field Communication) Smart Tags, engineered to deliver flawless proximity data transmission across commercial and development architectures. Operating on the unified global high-frequency band of 13.56MHz and compliant with the strict ISO 14443A protocol framework, these passive transceivers offer universal read/write compatibility with all modern NFC-enabled iOS and Android smartphones, alongside specialized industrial scanning hardware—instantly powering up via RF induction without the need for onboard battery subsystems.

The internal silicon architecture provides a dedicated 144 Bytes of usable EEPROM memory capacity, masterfully optimized for hosting critical single-touch payloads such as encrypted web URLs, digital business cards (vCards), secure Wi-Fi network authentication keys, or automated task triggers. Serving as the definitive hardware benchmark for proximity payment integration, access control badge deployment, asset tracking inventory optimization, and smart home macro execution, these tags interface seamlessly with external RFID/NFC reader modules (such as PN532 or RC522) inside custom Arduino, ESP32, and Raspberry Pi IoT system testing.

Quick Technical Specifications:

• Chip Type: Original NTAG213 - High sensitivity and fast response.

• Operating Frequency: 13.56 MHz (13.56MHz) - The unified global NFC frequency.

• Standard Protocol: ISO 14443A (Compatible with all smart phones and readers).

• Available Storage Capacity: 144 Bytes - Sufficient for links, smart cards, codes, and commands.

• Power Type: Passive - Operates and is wirelessly activated by the energy fields generated by the phone during reading.

المواصفات

• الوزن: داخلي وخارجي

Pros and cons

• منتج مستدام، مثالي للاستخدام اليومي
• قد يتغير لونه عند التعرض لأشعة الشمس المباشرة
