Description

The LCR-T7 Transistor Tester is a versatile handheld device designed for electronics enthusiasts and hobbyists. It serves as an indispensable tool for testing and analyzing various electronic components, including resistors, capacitors, diodes, transistors (both NPN and PNP), and inductors. Its clear 160 x 128 pixel LCD screen provides easy-to-read measurement results, and its auto-identification feature simplifies component testing by automatically detecting and identifying component types and pin configurations.

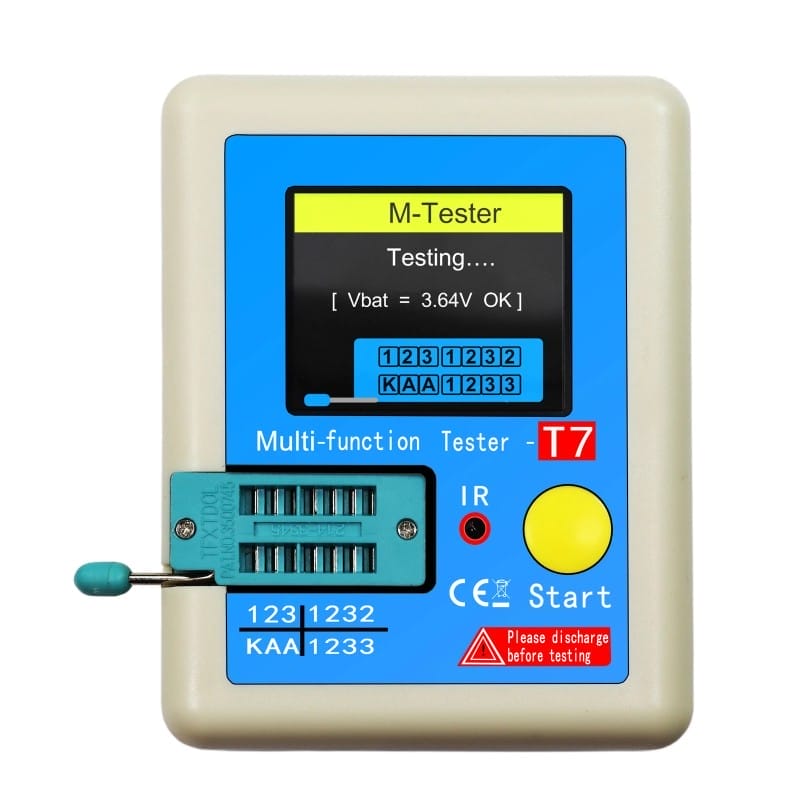

LCR-T7 TFT Transistor Tester Full Color Graphic Display Multifunction Test

A full-color display multi-function test instrument that can measure triodes, diodes, resistors, capacitors, inductors, thyristors, field effect transistors, regulators, dual diodes, light emitting diodes, infrared decoding. Can measure voltage, built-in lithium battery, long battery life

Features:

• Automatic detection of zener diode 0.0130v.

• Self-test with automatic calibration.

• Support infrared coding.

• Infrared waveform display.

• Infrared receiving instructions.

• The measurement results are displayed by TFT graphic.

• A key operation.

• Automatic shutdown (timeout setting).

• Built-in high capacity rechargeable lithium ion battery.

• Lithium ion battery voltage detection.

Specification:

Main color: blue

Scanning range: 0.1MHz

Voltage: 3.7 V

Display: 160 x 128TFT
Battery: 1 x lithium ion battery, 3.7v, 300mA

Weight: Approx.115g/4.1oz

MEASURABLE COMPONENTS

Resistor, capacitor, inductor, thyristor, triac, (double) diode, Z-diode, field effect transistor, bipolar transistor, infrared decoder

SPECIAL FEATURES

Automatic calibration, One key operation

BUILT-IN BATTERY

Lithium Ion rechargeable, 3.7 V, 350 mAh

CAPACITANCE

25 pF - 100 mF

RESISTANCE

0.01 Ω - 50 MΩ

INDUCTANCE

0.01 mH- 20H

BATTERY

0.1 - 4.5 V, 300 mAh

Z-DIODE BREAKDOWN VOLTAGE

0.01 - 30 V

Z-DIODE

0.01 - 4.5 V

DIODE

UF < 4.5 V

THYRISTOR / TRIAC

IGT < 6 mA

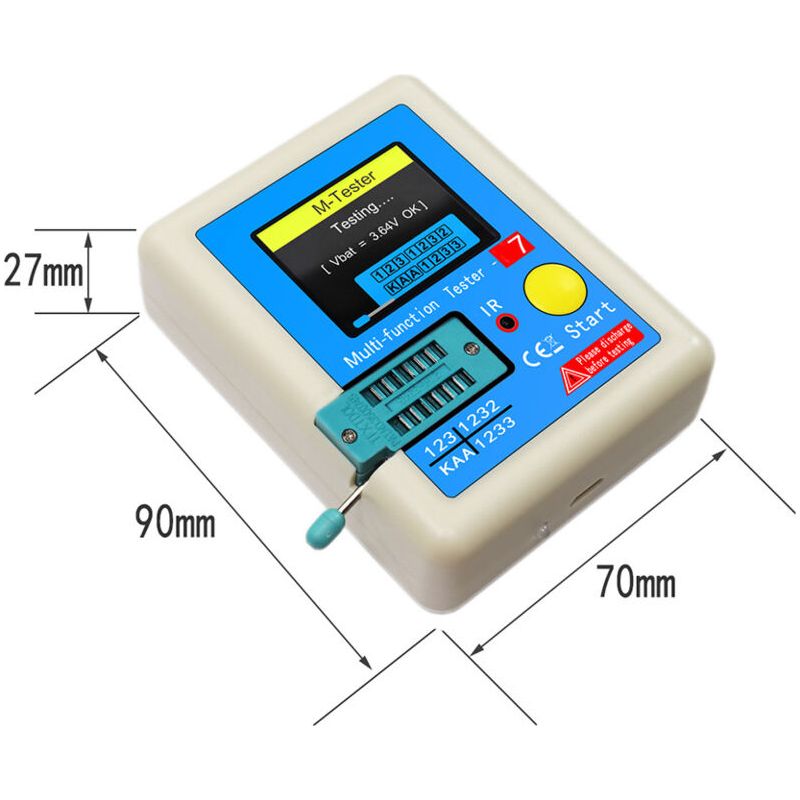

DIMENSIONS

90 x 70 x 27 mm

Package list:

1 x Transistor tester
1 x USB cable.
1 x Red and yellow green contact wires.
3 x contact pins

2 x capacitance
