Description

Professional Expansion Board and Port Distribution for 30-Pin ESP32 Boards with Dual Power Ports for Easy Connectivity.

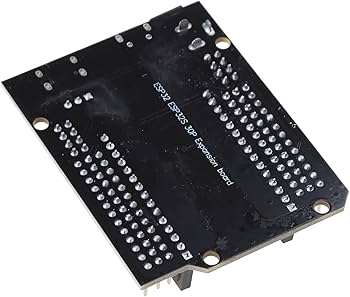

The comprehensive ESP32 Expansion Shield (30-Pin ESP32 Expansion Shield) is the integrated engineering base and the ideal solution to prevent wiring clutter and facilitate project building processes. It is specifically designed to install 30-pin ESP32 development boards and convert each individual signal pin into integrated triple connection points.

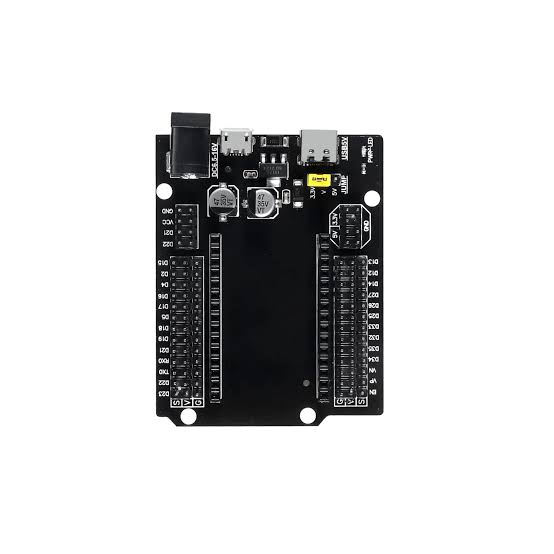

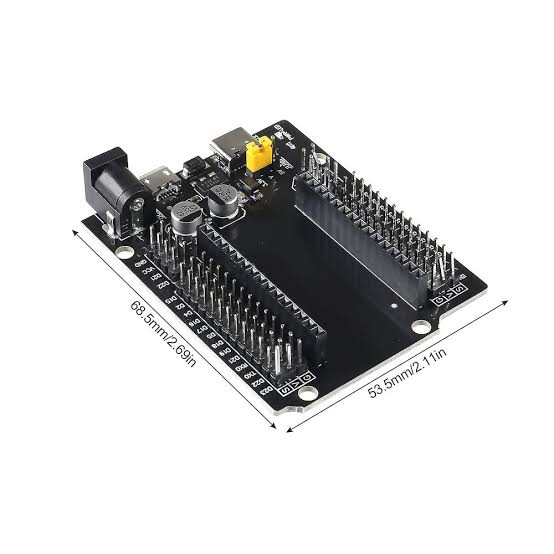

This board is considered the Benchmark for prototyping Internet of Things (IoT) and mechatronics systems, as it relies on a smart engineering architecture that expands each GPIO port of the board to be adjacent to a power line (VCC) and a mechanical ground line (GND). This design allows you to connect servo motors and various sensors directly via ordinary jumper wires without the need for a breadboard or complex wiring. The board features exceptional power feeding flexibility; it has a dual power interface that combines a modern Type-C USB port and a traditional Micro USB port, in addition to a barrel connector (DC Jack) that supports external adapters (6.5V-9V) with an internal voltage regulator that ensures a clean and stable current. It is the professional and daily choice for every engineer and developer building smart home automation projects, wireless intelligent robots, and advanced STEM projects that require ultra-fast networking and secure mechanical mounting inside project enclosures.

A premium, laboratory-grade 30-pin ESP32 expansion board shield precision-engineered to streamline hardware prototyping and eliminate messy wiring topologies. Standing as the definitive hardware benchmark for Internet of Things (IoT) development and smart automation, this shield breaks out every single GPIO pin of a standard 30-pin ESP32 development board into a high-density, 3-pin row configuration (Signal, VCC, GND). This architecture allows developers to plug in servos, sensor modules, and actuators directly with absolute plug-and-play ease. Outfitted with an ultra-flexible dual-power rail infrastructure, it hosts both a modern Type-C USB and a legacy Micro USB port, alongside a heavy-duty DC barrel jack (6.5V-9V input) integrated with onboard high-efficiency voltage regulators. It serves as an indispensable hardware safety asset for building clean industrial IoT enclosures, autonomous wireless robotics chassis, and advanced academic STEM mechatronics.

المواصفات

• الوزن: داخلي وخارجي

Pros and cons

• منتج مستدام، مثالي للاستخدام اليومي
• قد يتغير لونه عند التعرض لأشعة الشمس المباشرة
